Photovoltaic inverter harmonic control is an important technical issue in photovoltaic power generation systems, which is related to the stability of photovoltaic inverter operation and power generation efficiency.
In photovoltaic power generation systems, inverters are one of the nonlinear electrical devices because their voltage-current characteristics do not conform to a linear relationship. This nonlinear relationship will cause non-sinusoidal harmonic components of the current, thereby generating harmonics. Secondly, grid pollution is also one of the causes of harmonics. Other nonlinear load devices in the power system, such as televisions, computers, etc., and rectifiers used in electronic devices, will generate harmonics. These harmonics are transmitted from the power grid to the photovoltaic power generation system, which in turn has an adverse effect on the inverter.
As an important part of green energy, photovoltaic power stations have developed rapidly around the world in recent years. However, with the continuous increase in the installed capacity of photovoltaic power stations, the problem of harmonic resonance generated during their operation has become increasingly prominent. Harmonic resonance will not only damage the equipment of the power station itself, but may also pose a threat to the safe and stable operation of the power grid.
The impact of harmonics on photovoltaic inverters The impact of harmonics on photovoltaic inverters mainly includes the following aspects:
1. Reduce power generation efficiency: Harmonics will cause power loss in the inverter, thereby reducing the total power generation efficiency of the photovoltaic power generation system. This is because non-sinusoidal harmonic components will cause component loss in the inverter, and will also cause the power grid to interfere with the inverter, making the inverter unable to work in the best state.
2. Damage the inverter: Too many harmonics will cause the internal circuit of the inverter to overload, thereby damaging the inverter. Especially when the harmonic current becomes larger, the power components of the inverter may not be able to withstand excessive harmonic currents, causing component damage or burning.
3. Generate electromagnetic interference: Harmonics will cause electromagnetic interference, affecting the normal operation of other equipment connected to the photovoltaic power generation system. This will reduce the overall reliability and stability of the photovoltaic power generation system, and will also have an adverse effect on the power grid.
In order to solve the problems caused by harmonics in photovoltaic inverters, some harmonic control measures need to be taken.

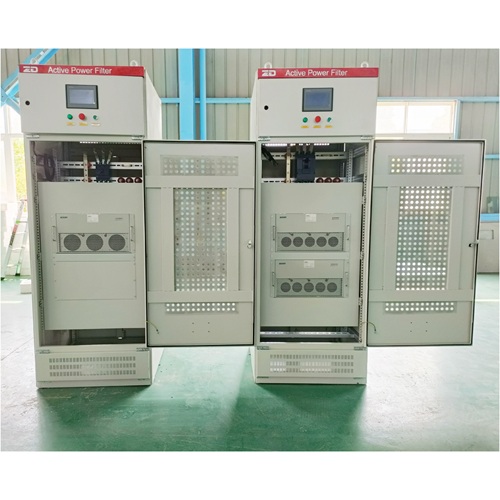

1. Harmonic filter: Installing a harmonic filter is one of the commonly used harmonic control methods. Harmonic filters can selectively absorb and eliminate harmonics according to frequency, thereby reducing the impact of harmonics on the inverter. Harmonic filters generally include two types: passive harmonic filters and active harmonic filters. The specific type to be selected needs to be decided based on actual conditions.
2. Optimize inverter design: Improving the design of the inverter is also an important means of harmonic control. For example, better component materials and structural designs can be used to reduce the generation of nonlinear current components; at the same time, by optimizing the inverter control strategy, the linearity of the system can be improved, thereby reducing the generation of harmonics.
3. Improve the quality of the power grid: The quality problem of the power grid is one of the important reasons for the introduction of harmonics, so improving the quality of the power grid is also a key link in harmonic control. By monitoring and optimizing the power grid, the harmonic content of the power grid can be reduced, thereby reducing the impact of harmonics on photovoltaic inverters.
4. Pay attention to the selection of electrical equipment: When installing a photovoltaic power generation system, select electrical equipment that meets national harmonic standards. These devices have a lower harmonic generation capacity and can reduce the interference of harmonics on photovoltaic inverters.
Photovoltaic inverter harmonic control is a technical issue that cannot be ignored in photovoltaic power generation systems. Understanding the concept and causes of harmonics, as well as the impact of harmonics on photovoltaic inverters, can help us understand the importance of harmonic control. In response to harmonic problems, measures such as harmonic filters, optimizing inverter design, improving grid quality, and paying attention to electrical equipment selection can effectively
solve the problems caused by photovoltaic inverter harmonics and improve the performance and reliability of photovoltaic power generation systems.
