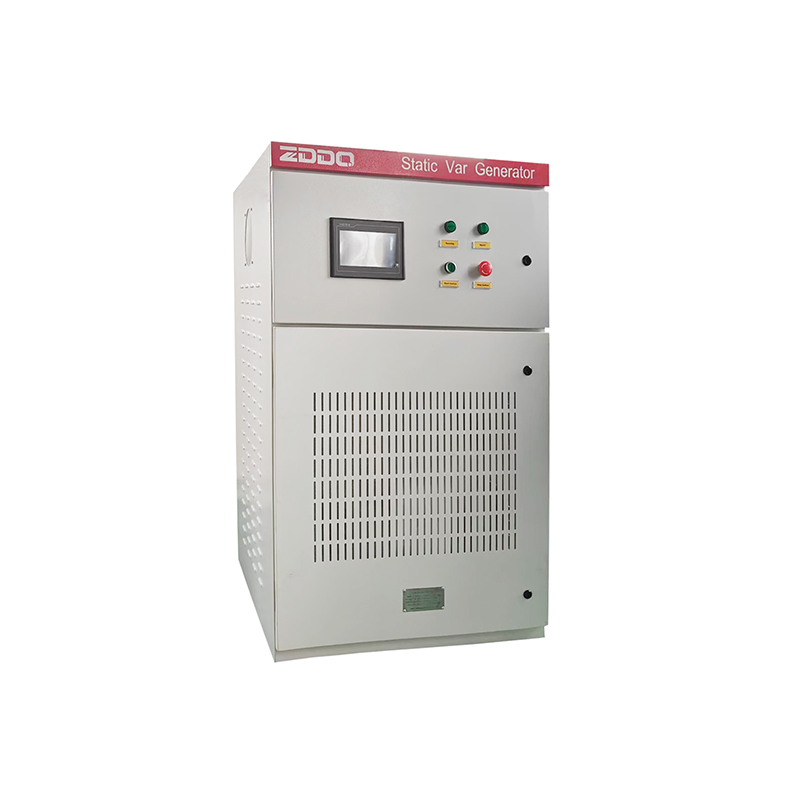

SVG(Static Var Generator), is a new-generation static reactive power compensation device based on IGBT power electronic conversion technology and high-speed digital control systems. Different from traditional passive compensation devices that can only provide fixed capacitive reactive power, the SVG cabinet adopts a voltage source inverter structure. It can rapidly generate or absorb inductive and capacitive reactive power bidirectionally, realizing continuous and stepless adjustment of power grid reactive power. With a full response time within 20 milliseconds, it can cope with sudden and drastic load changes, which is far more efficient than traditional compensation devices with slow switching response.

The SVG compensation cabinet integrates multiple core functions to comprehensively optimize power quality. Its primary function is high-precision reactive power compensation, which can stabilize the system power factor within 0.99 to avoid reactive power fines and reduce line power consumption. In addition, it effectively solves three-phase load imbalance problems, suppresses neutral current, and balances grid voltage distribution.

Compared with traditional reactive power compensation equipment, SVG compensation cabinets have outstanding technical and structural advantages. Firstly, it features fast response and high compensation accuracy. Relying on high-frequency IGBT switching and real-time sampling algorithms, it tracks dynamic load changes in real time and achieves stepless fine compensation without over-compensation or under-compensation. Secondly, the equipment has strong operational stability and low loss. It adopts an independent air duct heat dissipation structure and modular design, with good heat dissipation effect and strong environmental adaptability, which can operate stably in high-temperature and high-dust industrial environments. Moreover, the SVG cabinet has a small floor space, compact structure, and no resonance risk with the power grid, overcoming the inherent defects of traditional capacitor compensation devices such as easy resonance and poor stability.

In terms of operational performance, the SVG compensation cabinet has ultra-high compensation efficiency of more than 95%, with low self-power consumption and significant energy-saving effect. It supports multiple working modes, including independent reactive power compensation, three-phase imbalance compensation, and hybrid compensation, which can be flexibly switched according to actual power consumption conditions. In addition, it is equipped with perfect protection mechanisms such as overcurrent, overvoltage, undervoltage, and overheating protection, as well as intelligent remote monitoring functions. Users can view operating data, fault information and compensation status in real time, realizing unattended and intelligent operation and maintenance.

Benefiting from superior performance and flexible functions, SVG compensation cabinets are widely used in various industrial and commercial scenarios. In manufacturing industries such as machinery processing, textile, printing and chemical industry, they are used to solve power quality problems caused by large-scale motor operation and frequent load changes. In new energy fields including photovoltaic power stations and wind power plants, SVG stabilizes grid voltage and suppresses power fluctuation caused by intermittent power generation. It is also widely applied in data centers, commercial buildings, subway transportation, charging station clusters and other scenarios with high requirements for power supply stability and power quality.

To sum up, the SVG compensation cabinet is an indispensable high-efficiency power quality optimization device in modern power systems. With its fast response, high precision, multi-function and high stability, it effectively reduces enterprise power consumption, improves power grid operation safety, and creates significant economic and safety benefits. As industrial power consumption becomes more complex and power grid quality standards continue to improve, SVG compensation technology will be more widely popularized and applied in the power industry.
