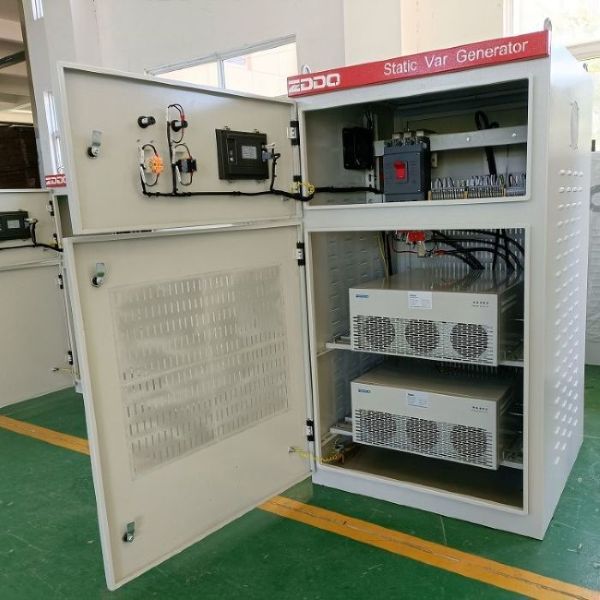

Low-Voltage Static Var Generator Reactive Power Compensation Device Description

Application Scenarios for SVG Reactive Power Compensation Devices

Reactive power compensation devices should be installed wherever low-voltage transformers or large-scale electrical equipment are present; their installation is particularly mandatory in industrial facilities, commercial enterprises, and residential areas characterized by low power factors. There are especially critical for large asynchronous motors, transformers, electric welders, punch presses, clusters of lathes, air compressors, hydraulic presses, cranes, smelting operations, steel and aluminum rolling mills, large-scale switching equipment, electric irrigation systems, and electric locomotives. In residential areas—beyond just incandescent lighting—appliances such as air conditioners and refrigeration units also represent significant sources of reactive power consumption that cannot be overlooked. Rural power supply conditions are often challenging; in many regions, power supply is insufficient, voltage fluctuations are severe, and power factors are notably low. Consequently, the installation of compensation equipment serves as an effective measure for improving power supply quality and enhancing the efficiency of electrical energy utilization.

Advantages of SVG Reactive Power Compensation Devices

Compensation Method: The SVG utilizes power modules to perform reactive power compensation; the resulting power factor typically exceeds 0.98.
Compensation Speed: The SVG is capable of completing a compensation cycle within 5 to 20 milliseconds.
Stepped vs. Stepless: The SVG offers stepless compensation starting from as low as 0.1 kVar, thereby achieving fully precise compensation.
Harmonic Filtering: The SVG does not generate harmonics, nor does it amplify existing harmonics.
Service Life: The SVG boasts a service life of over ten years, features extremely low internal power losses, and requires virtually no maintenance.
