690V Static Var Generator ZDDQ-SVG-2000

May 06,2020

ZDDQ 690V Static Var Generator

ZD-SVGM-2000 Static Var Generator (SVG) is the new standard in reactive energy compensation for 690V networks. This power electronic current source is the accurate and highly reliable solution for today’s networks characterised by significant increase in harmonics, voltage variations caused by intermittent renewable sources connected to the network and voltage level due to the smart grid development. The DSP controlled IGBT topology enables a perfect compensation on each phase for both inductive and capacitive loads. It also correct phase unbalance where necessary. Immune to harmonics, resonance and voltage level, it offers a maintenance free solution reusable in any network configuration.

Data Sheet

Electrical properties	Rated voltage	690VAC,3P3W
	Input voltage	600~690(~20%~+15%)VAC
	Rated frequency	50Hz
	Circuit topology	Three-level topology, IGBT
	Reactive compensation effect	>0.98
	Response time	<5ms
	Active loss of system	<3%
	Over current capacity	1.1
	MTBT	>100,000 hours
Control characteristics	Communication mode	Modbus protocol; RS485, Bluetooth (optional), GPRS (optional)
Control characteristics	Control connection	Fiber or electrical connection
Structural characteristics	Weight	Refer to the model selection table.
	Level of protection	IP2X
	Cooling method	Speed regulation intelligent air cooling
Environmental requirements	Ambient temperature	-20~55℃
	Relative humidity	Maximum 95%, without condensation
	Mounting height above sea level	≤2000m at rated capacity;

Model Tabel

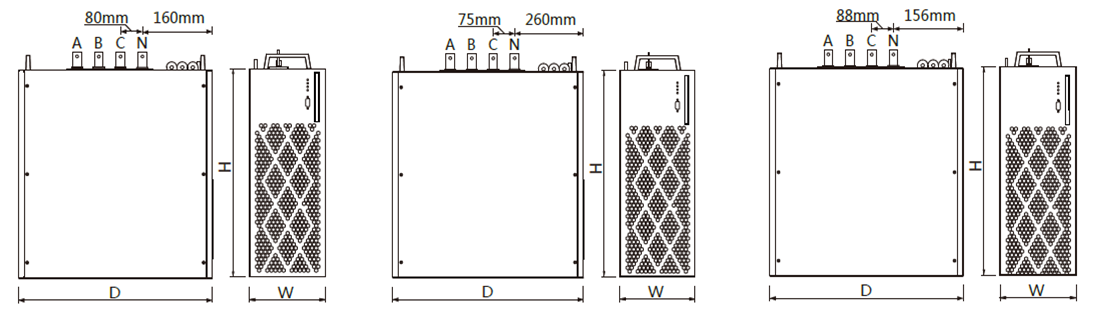

Applied Type	Model	Connection Type	Voltage Class	Capacity		Dimension
SVG Module	ZD-SVG-2000/100-6-3L	3P 3W	690V	100kvar	87A	550×550×185mm
	ZD-SVG-2000/150-6-3L	3P 3W	690V	150kvar	131A	550×550×185mm
	ZD-SVG-2000/200-6-3L	3P 3W	690V	200kvar	175A	580×650×220mm
	ZD-SVG-2000/300-6-3L	3P 3W	690V	300kvar	288A	580×640×225mm
