low voltage automatic capacitor banks with filters

Overview of Automatic Capacitor banks with filters

ZDDQ low voltage automatic capacitor banks with filters provide a cost-effective, user friendly, reliable solution for power factor correction and harmonics filtering. They are a more efficient alternative to individual motor capacitors, especially in large industrial facilities.

ZDDQ automatic capacitor banks are designed to provide power factor correction with a single installation on the main plant bus and are ideal for applications where plant loading is constantly changing, resulting in the need for varying amounts of reactive power. The solid state reactive power controller reacts to a current signal from a single remote current transformer (provided by the customer), measures plant power factor and adjusts system load requirements in selected kVAr steps in order to maintain the desired target power factor.

Features of Automatic Capacitor Banks

1. Wide range in voltage levels from 240 to 1000 V.
2. Capacities from 30 to 1200 kvar.
3. Filter Hamronics
4. Correct 3 phase unbalance
5. Operation in ambient temperatures from -25 °C to 50 °C.
6. Long life cycle due to high quality low losses components and sturdy designed to work constantly at 80 °C operation temperature.
7. Single phase explosion-proof capacitors, 100% recyclable and UL certified (without potting).
8. Complete safety for the operator: Main switch operated from outside, individual discharge resistances which prevent unnecessary risks for the operator.
9. Easy installation and minimum maintenance: 100% onsite maintainable.

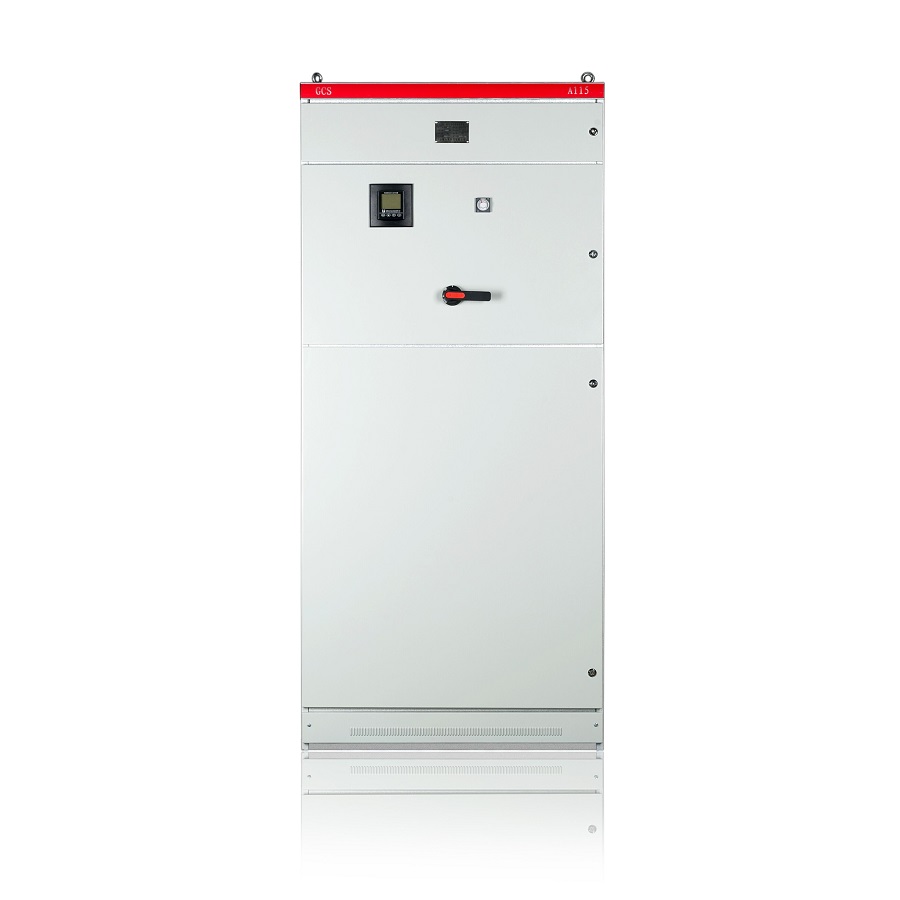

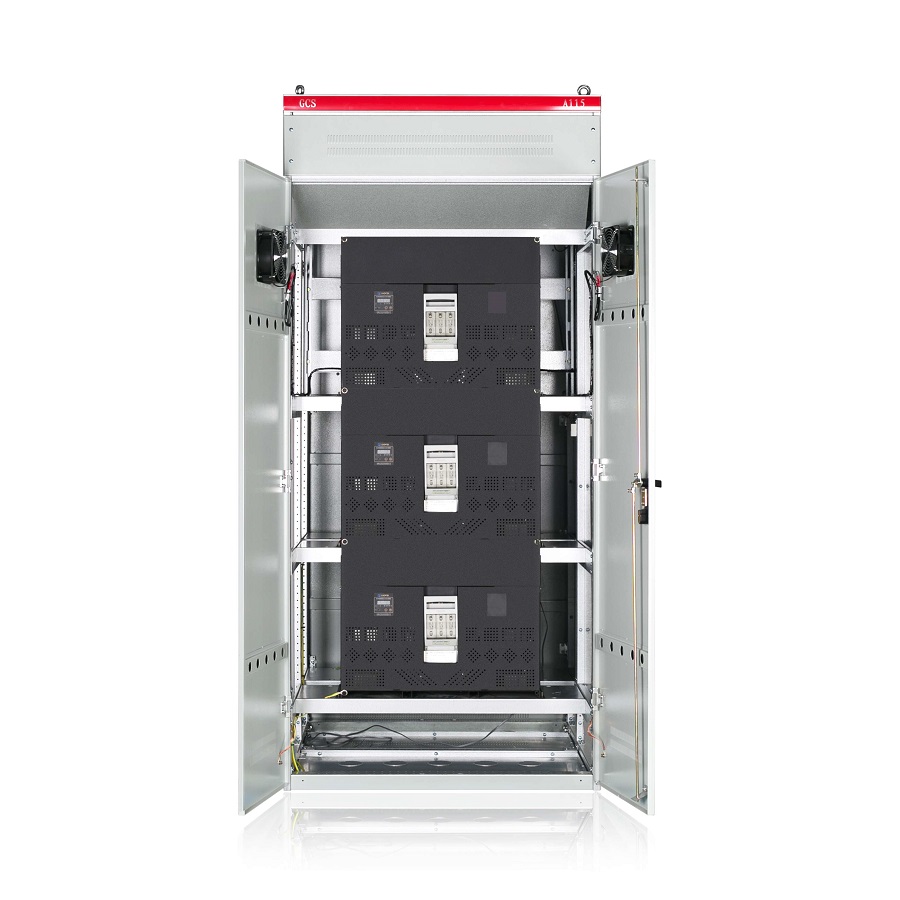

Low voltage automatic capacitor banks	Low voltage automatic power factor correction panel

Benefits of Automatic Capacitor Banks

1. Eliminate charges due to a low power factor.
2. Reduce losses within the system due to Joule effect (heating).
3. Better voltage support and regulation.
4. Free-up system capacity.
5. Prevent premature equipment fail due to excessive heating cause by under voltage functioning.
6. Adjust power factor dynamically according to load profile.
7. Reduce capital expenses up to 30%.
8. Reduce reactive energy billing penalties and lower operating expenses up to 10%
9. Reduce energy losses by up to 30%

10. Improve power system and equipment reliability up to 18%

Applications of Automatic Capacitor Banks

ZDDQ automatic capacitor banks are widely used for fluctuating loads such as motors, variable frequency drives, melting furnace from Steel Rolling mills,Chemical industry,Cement plant, Suger plant, Textile, Hospitals, Hotels, Building segment,Automobile industry,Oil and gas industry,public grid etc.
