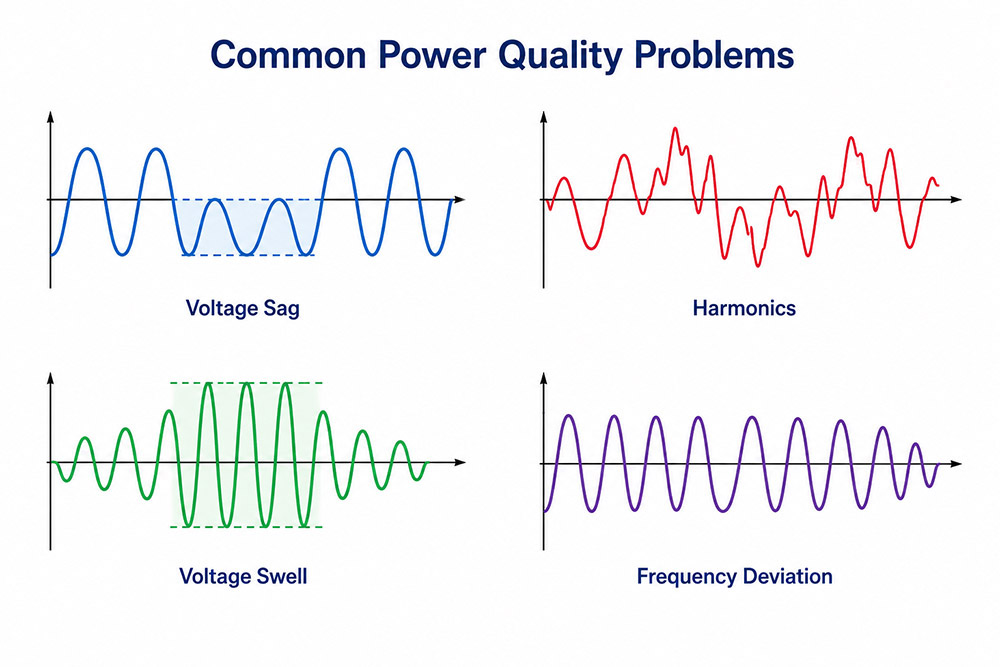

In modern industrial, commercial and residential power grids, clean and stable sinusoidal voltage is the foundation for reliable operation of all electrical equipment. However, grid faults, nonlinear loads, switching operations and renewable energy integration constantly introduce various power quality issues. The waveform diagram clearly illustrates four most prevalent power quality disturbances: voltage sag, voltage swell, harmonics and frequency deviation. Each abnormality distorts the ideal AC waveform and brings hidden risks to production lines, precision instruments and power supply infrastructure.

1. Voltage Sag

The blue waveform shows a temporary drop in RMS voltage for several cycles. Voltage sags are mostly triggered by large motor startup, short-circuit faults or heavy load switching. Even a short-duration sag can lead to PLC shutdown, conveyor halt, data loss in servers and production line downtime, causing massive economic losses for manufacturing plants.

2. Harmonics

The jagged red sine wave represents harmonic distortion. Nonlinear loads including variable frequency drives, welding machines, LED lighting and UPS generate harmonic currents, which contaminate the grid voltage waveform. Harmonics accelerate transformer overheating, damage power capacitors, interfere with communication signals and shorten the service life of all connected electrical devices.

3. Voltage Swell

The green waveform features a short-term rise in voltage amplitude. Voltage swell usually occurs when large loads are suddenly disconnected or during single-phase ground faults. Excess instantaneous voltage will overstress insulation of motors, circuit boards and sensitive electronics, resulting in permanent component burnout.

4. Frequency Deviation

The purple curve displays gradual frequency drift of the fundamental wave. Frequency deviation often emerges in weak grids with high penetration of wind and solar power, or under severe grid load imbalance. Since most motors and timing instruments rely on standard grid frequency, frequency fluctuation will cause rotational speed instability, timing errors and abnormal operation of precision automation equipment.

Unmanaged power quality disturbances are not just minor waveform defects—they translate into unplanned downtime, higher maintenance costs, shortened equipment lifespan and even safety hazards. Facilities with heavy nonlinear loads or sensitive precision equipment must adopt targeted solutions: SVG/APF for harmonic filtering, voltage stabilizers for sag/swell suppression, and grid energy storage systems to stabilize frequency.
