33kv statcom

High voltage Battery Energy Storage System BESS

Energy storage is critical to decarbonizing the power system and reducing greenhouse gas emissions. It's also essential to build resilient, reliable, and affordable electricity grids that can handle the variable nature of renewable energy sources like wind and solar. There are different energy storage solutions available today, but lithium-ion batteries are currently the technology of choice due to their cost-effectiveness and high efficiency.

  • Brand:

    FGi
  • item no.:

    FGESS-C100/33-O
  • Payment:

    T/T,LC
  • market price:

    $50000
  • product origin:

    China
  • Color:

    RAL7035
  • shipping port:

    QingDao, Shanghai
  • Lead Time:

    45 days
  • Product Detail

What is a Power Conversion System PCS?

With the enormous amount of energy being consumed in today's world and government policies to minimize carbon emissions, the shift to renewable energy makes reliably delivering energy where and when it is needed more challenging than ever. As a result, demand for energy storage systems is also on the rise. A critical component of any successful energy storage system is the power conversion system (PCS)

A Power Conversion System (PCS) is a device for bidirectional conversion of electrical energy connected between the battery system and the grid and/or load. This device should have charge and discharge functions, active and reactive power control functions and off-line switching functions.

The PCS (Power Conversion System) consist of converters, control system, transformer & switch gear (where needed). Thanks to its modular design we can quickly configure Power Conversion Systems for both large commercial & industrial plants as well as utility scale units with one of the highest power densities available on the market.


What is a Battery Energy Storage System BESS?

Battery Energy Storage Systems ESS, are rechargeable batteries that can store energy from different sources and discharge it when needed. BESS consist of one or more batteries and can be used to balance the electric grid, provide backup power and improve grid stability.

Amid an increased focus on renewable energy sources, BESS (Battery Energy Storage System) compensates for the intermittency of these sources, providing essential value for operators by enabling a stable supply of electricity thus avoiding curtailment of renewable energy and maximizing their revenue.


Energy Storage System and Power Conversion System

AC/DC bidirectional converters, control elements, switching components, and cooling compose a power conversion system. There are many layers of remote control for the system. This is designed to regulate the battery’s charge or discharge, as well as the grid’s active and reactive power. In order to obtain information about the state of the battery pack and cells, the PCS can simultaneously connect with the battery management system (BMS) using a number of interfaces and protocols (RS-485, CAN, Fibre-Optics, Ethernet). As a result, the battery can be charged and discharged safely, and the energy storage system can run without interruption.


Single Line Diagram

Single Line Diagram Of Energy Storage System


From renewable energy producers, conventional thermal power plant operators and grid operators to industrial electricity consumers, and offshore drilling platforms or vessels, BESS offer highly efficient and cost-effective energy storage solutions.

With BESS, you can even generate new revenue streams as it allows energy arbitrage or directly reduce your electricity bill via peak shaving.


Where is the BESS used?

      • Renewables – Battery energy storage aligns solar and wind generation peaks with demand peaks.
      • Residential and Commercial - lower energy costs, improves load factor, and manages demand peaks.
      • Utility distribution grid - balances fluctuating demand at peak hours while reducing grid overload.
      • Industrial loads - provides backup power for critical loads, improves load factor, and manages demand peaks.
      • Electrification of transportation - reduces demand on the grid and enables fast DC charging without increasing demand charges.
Where is the BESS used?


Product features:

      • High protection level IP54, strong environmental adaptability,Native outdoor design, which means reduced cost of cooling and better operational efficiency
      • Integrated design, convenient for installation and maintenance
      • Direct mounted design, high overall efficiency
      • Automatic redundancy design, high reliability
      • Full one-stop-shop, no scope gaps with energy storage procurement and operations – includes batteries, Power Control System, Battery Management System, Energy Management System, Operating & Maintenance, and trading to a seamless system

      • Support multi-unit parallel connection, which can be rapidly expanded to 100 MW and above
      • High operating voltage – better efficiency and reduced electrical installation needs

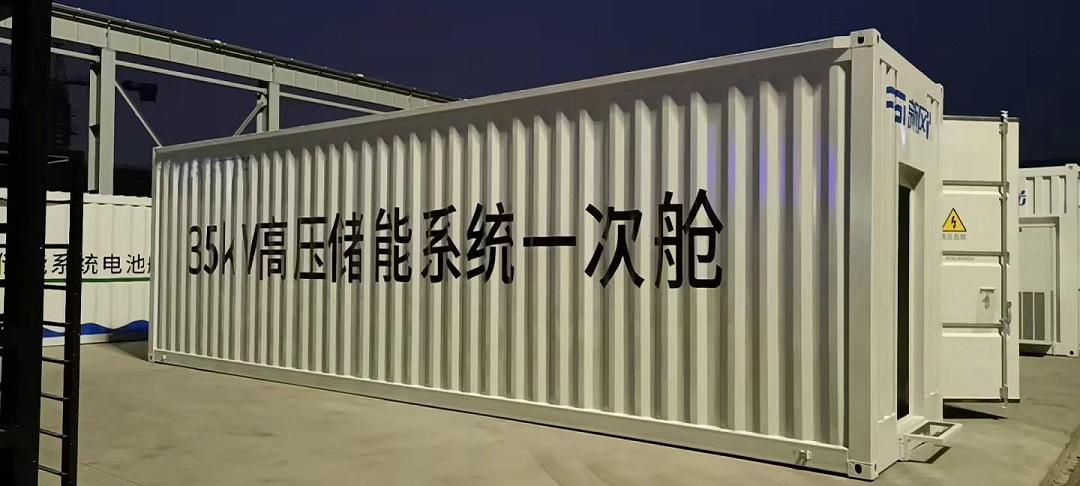

Container Size of BESS


Technical Specifications

Parameters
Rated voltage 6kV~35kV±10%
Rated frequency 50Hz
Working frequency 48~50.5Hz
Rated capacity 2MW~100MW
Battery capacity Configure according to the actual situation
Topology H bridge cascade
Current harmonic(THDi) 3%(≥25%P)
Response time 10ms
Charge/discharge switching time 10ms
Over load capacity 110% 10mins, 120% 1mins
Power supply Multichannel power supply
Control power supply 380VAC, 220VAC/220VDC
Reactive power regulation With reactive power regulation function
Communication interface Rs485, Ethernet
Communication protocol Modbus RTU, IEC 103/104
Running mode Active power/Reactive power independent control
Protection function Short circuit protection, Over-current protection, island protection, communication protection, AC side undervoltage/overvoltage protection, DC side overvoltage/undervoltage protection, cooling system fault protection, etc
Multi module parallel connection Support
Redundancy function Support
Cooling mode Air conditioner/Water cooling
Installation mode Indoor/Outdoor container
Working temperature -25~45
Protection degree Indoor IP20, Outdoor IP54
Altitude 1000m/Customize


Rated Capacity(Poweer) and Dimensions

Voltage class Rated power Rated capacity Weight Dimension(m)
(kV) (MW) (MWh) (T) Width(W) Depth(D) Height(H)
6/6.6 2 2 45 14 2.438 2.896
2 4 90 2*14 2.438 2.896
3 3 65 6.096+12.192 2.438 2.896
3 6 130 3*12.192 2.438 2.896
10/11 4 4 95 3*9.144 2.438 2.896
4 8 190 6*9.144 2.438 2.896
5 5 110 3*12.192 2.438 2.896
5 10 220 6*12.192 2.438 2.896
10 10 230 6*12.192 2.438 2.896
10 20 450 12*12.192 2.438 2.896
33/35 10 10 240 6*12.192 2.438 2.896
10 20 460 12*12.192 2.438 2.896
12 12 270 6*12.192 2.438 2.896
12 24 540 12*12.192 2.438 2.896
15 15 330 9*12.192 2.438 2.896
15 30 650 18*12.192 2.438 2.896
30 30 660 18*12.192 2.438 2.896
30 60 1300 36*12.192 2.438 2.896
50 50 1080 24*12.192 2.438 2.896
50 100 2100 48*12.192 2.438 2.896
100 100 2160 48*12.192 2.438 2.896
100 200 4200 96*12.192 2.438 2.896
